MEASURING INSTRUMENT DIRECTIVE (MID)

When a colocation provider bills its customers for electricity usage, they must comply with legal metrology legislation, and that legislation’s requirements for electricity meters. The European Union has defined the essential requirements for 10 different measuring instrument types, including active electrical energy meters, in the Measuring Instrument Directive (MID).

For data centre providers in the EU to be compliant, electricity meters used for customer billing must be MID certified.

“I find Powerapp easy to use and in addition it’s MID certified, which is a must for Digital Realty”

Stephen Ball, Digital Realty

Energy meters

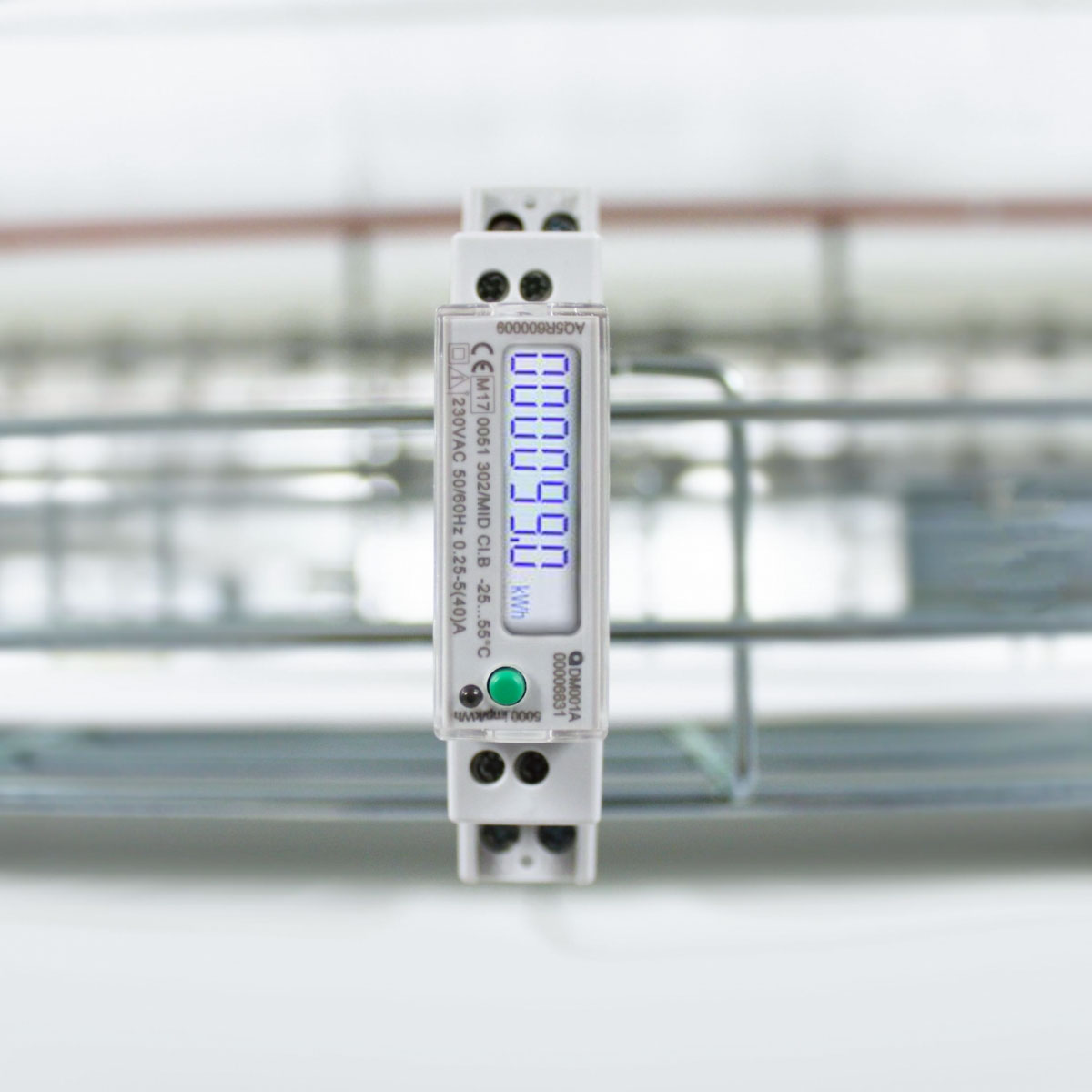

MID CERTIFIED ENERGY METER

32A single phase

Compact energy meter for branch circuit level monitoring. The unit is only 1 DIN module wide and comes with built-in communication.

  • 32A 230V direct measurement
  • 1 DIN module wide
  • Mbus communication
  • kWh, kW, A and more data
  • MID certified module B+D
  • Approved for customer billing
  • Documentation

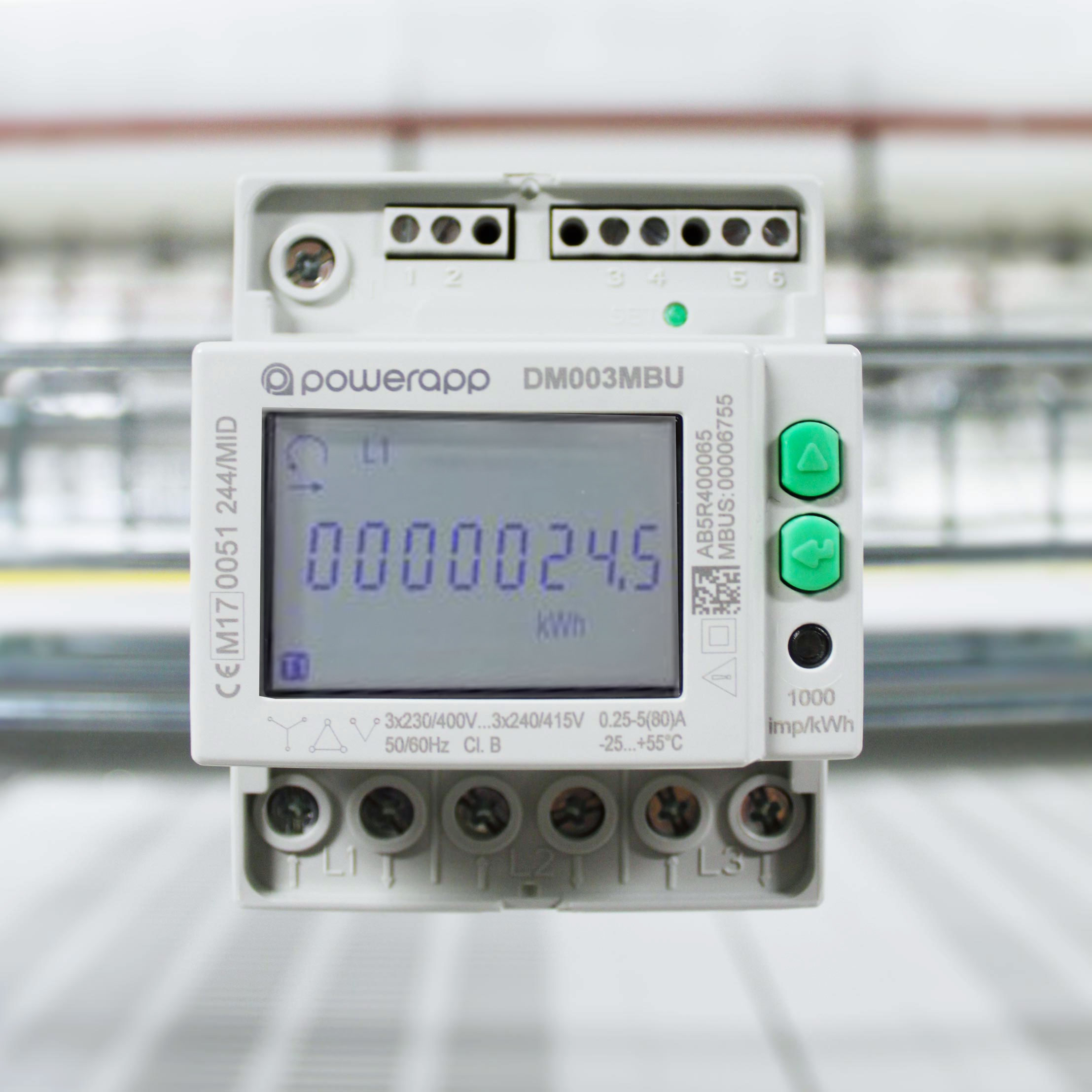

MID CERTIFIED ENERGY METER

80A three phase

Three phase meter which is ideal for monitoring an entire cage area or high capacity racks.

  • 80A 400V direct measurement
  • 4 DIN unit wide
  • Mbus communication
  • kWh, kW, A and more
  • MID certified module B+D
  • Approved for customer billing
  • Documentation

RETROFIT EXISTING INFRASTRUCTURE

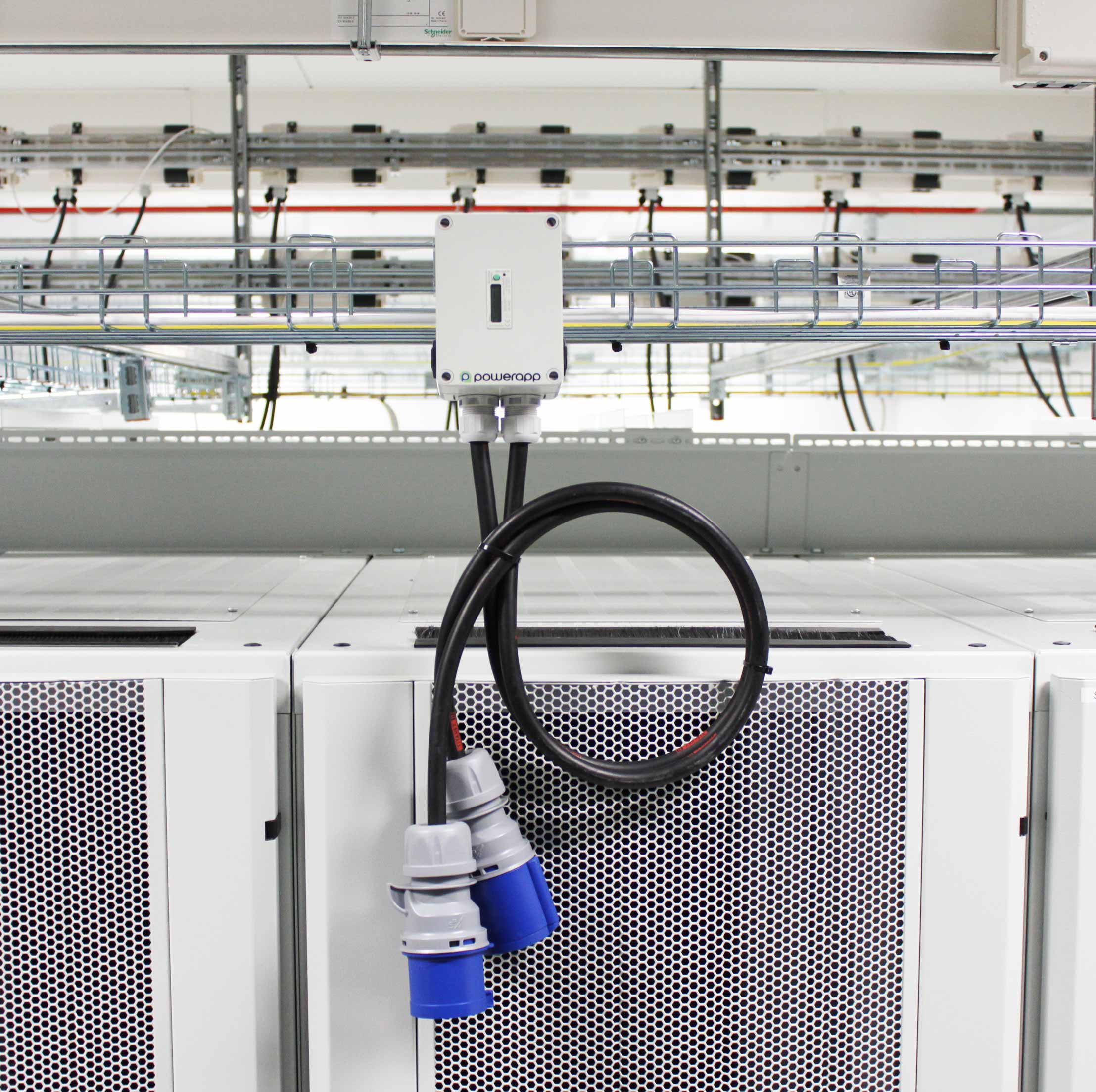

In-line meter – single phase

Easy to install solution for existing racks. The in-line meters are installed between the power outlet and the rack PDU. The in-line meters come as standard with CEE plug and bracket for mounting on cable tray. Custom brackets, cable length and plug type is available to meet customer specifications.

  • 16A or 32A 230V direct measurement
  • Mbus communication
  • kWh, kW, A and more data
  • Standard RJ45 patch cables are used for communication
  • MID certified and approved for customer billing

RETROFIT EXISTING INFRASTRUCTURE

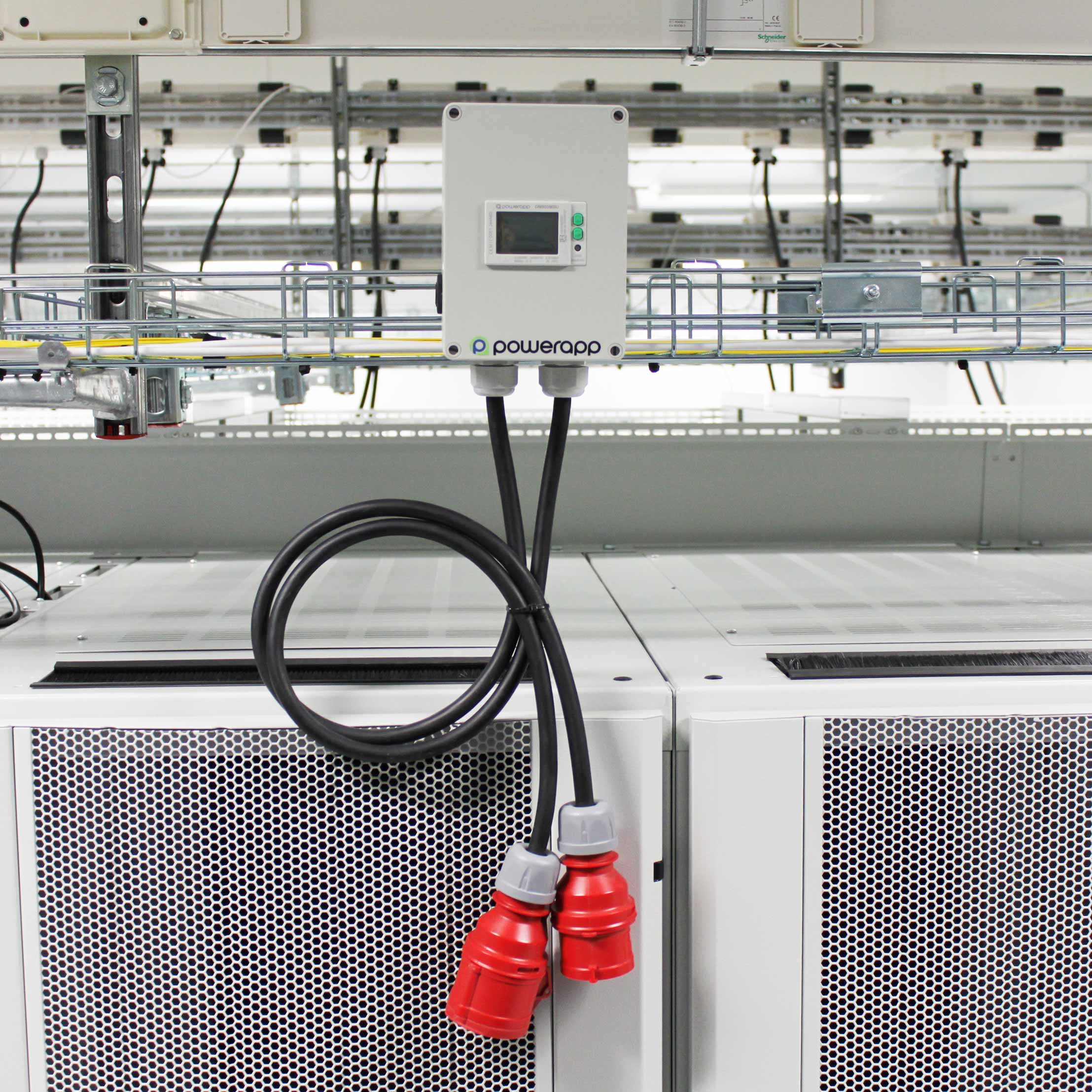

In-line meter – three phase

Easy to install solution for existing racks. The in-line meters are installed between the power outlet and the rack PDU. The in-line meters come as standard with CEE plug and bracket for mounting on cable tray. Custom brackets, cable length and plug type is available to meet customer specifications.

  • 16A or 32A direct measurement 400V
  • Mbus communication
  • kWh, kW, A and more data
  • Standard RJ45 patch cables are used for communication
  • MID certified and approved for customer billing
